PALLET LIFTING EQUIPMENT





pallet lifting





pallet lifting

We offer a clever pallet lifting cage, ideal for construction sites.



The cage saves time when lifting a euro pallet compared to using a crane fork.

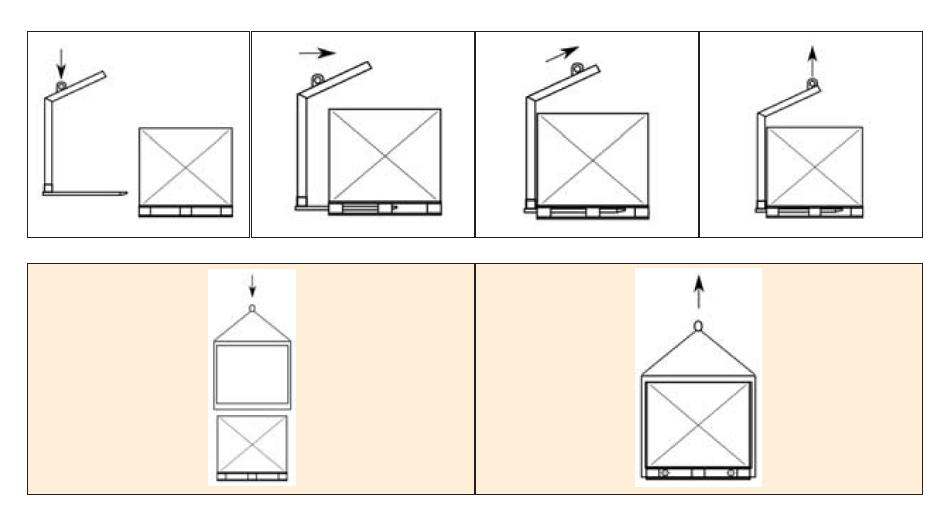

The image shows when using a crane fork four stages are required, whereas the cage only needs two.

PALLET lifting





pallet lifting





pallet lifting

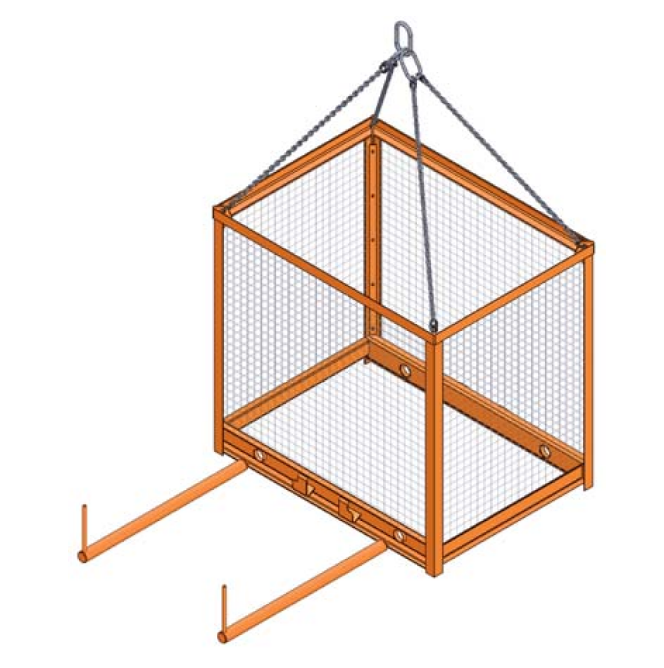

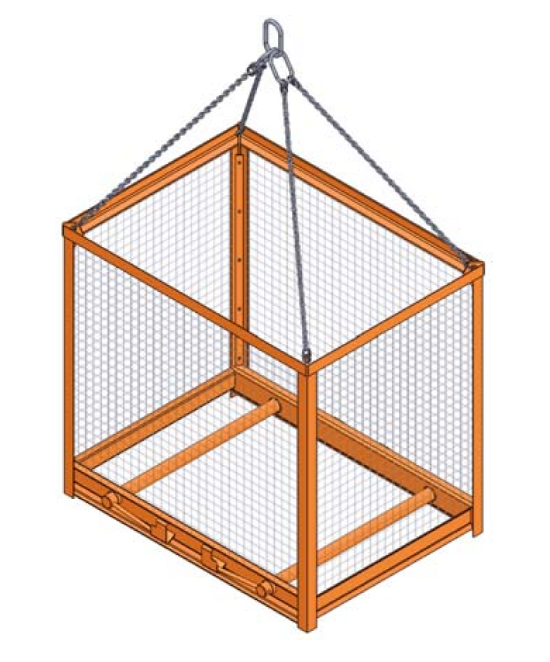

The pallet lifter is simply lowered over the pallet with two 'pins' pulled out. Once lowered over the pallet, these pins are pushed in to locate underneath the pallet - like forks.



Capacity: 1500 kg



Size (LxWxH): 1304 x 964 x 2250 mm



Unit Weight: 96 kg



A semi-automatic version is also available that used rotatable forks.
