CHAIN LIFTING SLINGS'More Information & Buy Online'
|
| We offer a range of chain slings made up of alloy chain with eye and clevis pin components and couplings that combine together to make an extremely comprehensive range of options. |
Although many of the sling configurations are standard, such as single, two, three and four leg chain slings, a vast array of hooks and rings exist to suit your specific requirements. |
| A shortening clutch or grab hook can be used to shorten the leg(s) length to suit the item to be lifted and headroom available. |

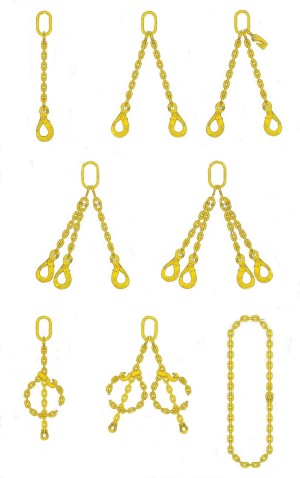

| A small representation of the different chain lifting sling assemblies are illustrated below. |
 |
A representation of the most common hooks used on chain lifting slings are illustrated below
 |
 |
| Chain Sling Hook - can be supplied without latch | Chain Sling Hook - can be supplied without latch |
 Datasheet |
Datasheet |
 |
 |
Chain Sling Safety Hook |
Chain Sling Safety Hook |
| Datasheet |
Datasheet |
 |
 |
Chain Sling 'C' Hook |
Chain Sling Foundry Hook |
| Datasheet |
Datasheet |
 |
 |
Chain Sling Swivel Safety Hook |
Chain Sling Swivel Latch Hook |
| Datasheet |
Datasheet |
GRADE 80 CHAIN SLING SAFE WORKING LOADCHART
UNIFORM LOAD METHOD - BS EN 818-4
Size mm |
Single Leg |
Endless |
Two Leg 0° - 45° 45° - 60° |
Three and Four Leg 0° - 45° 45° - 60° |
|
|
|
|
7 |
1.5 |
2.5 |
2.1 |
1.5 |
3.1 |
2.2 |
8 |
2.0 |
3.1 |
2.8 |
2.0 |
4.2 |
3.0 |
10 |
3.15 |
5.0 |
4.25 |
3.15 |
6.7 |
4.75 |
13 |
5.3 |
8.5 |
7.5 |
5.3 |
11.2 |
8.0 |
16 |
8.0 |
12.5 |
11.2 |
8.0 |
17.0 |
11.8 |
20 |
12.5 |
20.0 |
17.0 |
12.5 |
26.5 |
19.0 |
22 |
15.0 |
23.6 |
21.2 |
15.0 |
31.5 |
22.4 |
26 |
21.2 |
33.5 |
30.0 |
21.2 |
45.0 |
31.5 |
32 |
31.5 |
50.0 |
45.0 |
31.5 |
67.0 |
47.5 |
| A number of specific purpose chain lifting slings are available for lifting pipes, lifting cases, lifting bales, lifting drums and for the building industry, barrow lifting slings incorporating a unique pig tail lifting hook. |
| For further information, sizes, safe working loads etc. please see our datasheets or contact our sales office on 01767 312125. |
