Lifting Magnets

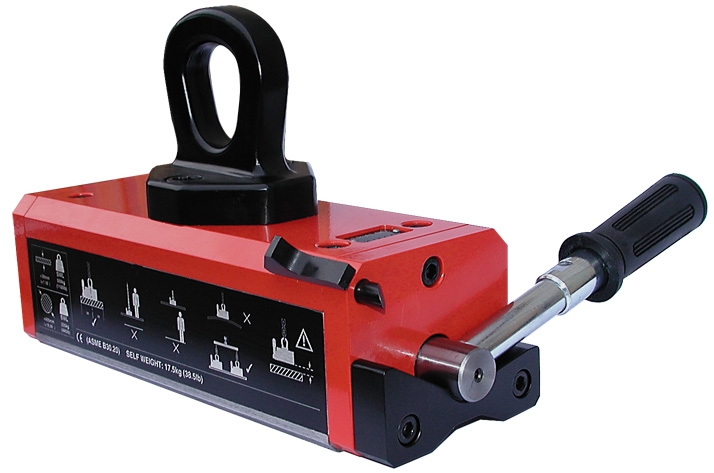

Permanent lifting magnets





Magnet







magnet











Permanent lifting magnets provide a quick, cost effective solution for lifting ferrous metal parts including plate and sheets. Benefits include:

* Easy to fit

* One man operation

* No power required



Permanent lifting magnets are sensitive to air gaps. This means when the air gap between the load and lifter increases, the magnetic force will decrease considerably. The handling of loads with a rough and uneven surface is therefore restricted. Typically these magnets are used individually on in pairs on a short beam.



The manual supplied with each magnet provides detailed information of its capacities under various conditions and plate thicknesses.

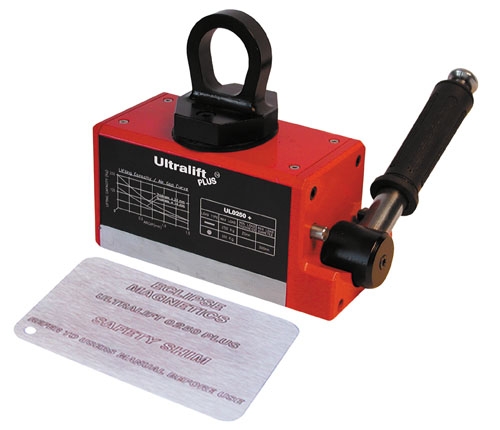

The UL is supplied with a non ferrous safety shim that can be used to create an air gap between the magnet and the product in order to carry out a 'test lift'. If the magnet lifts the item then the shim can be removed and a safety factor of 3:1 is then guaranteed.



Maximum workload limit is 5000 kg.



More Information...





Electric Chain Hoist   Datasheet - ULE



Electric Chain Hoist   Datasheet - UL c/w Safety Shim





Lifting Magnets - TP

for thin plate and manipulation





magnet lifter

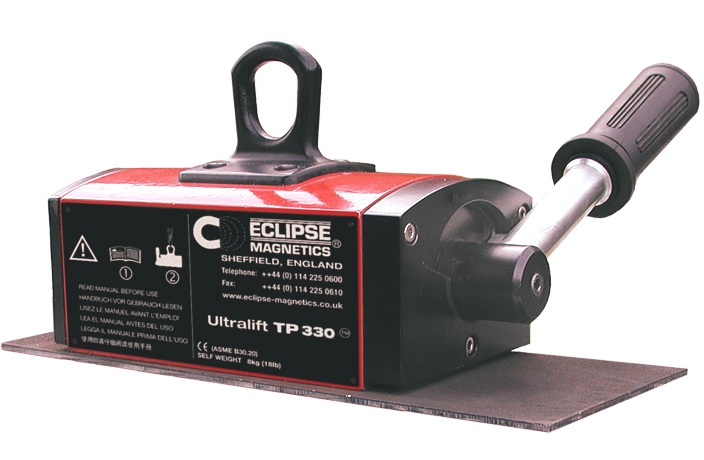

The TP permanent lifting magnets are specifically designed to lift thin plate from 5 mm.



Capacity: 150 & 300 kg



Complies with UNI EN 13155.



More Information...



Electric Chain Hoist   Datasheet - TP





Lifting Magnets - LF

for thin plate and manipulation



magnet lifter

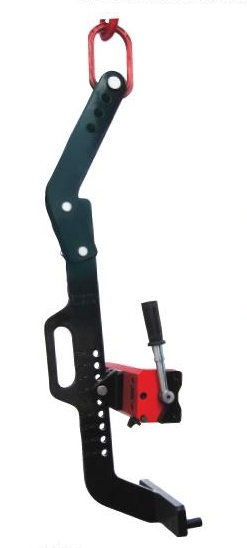

The LF series of permanent lifting magnets are used to lift loads from the horizontal to vertical and vice-versa by using a special lifting arm fitted to the magnet.



The lifting arm has a pair of pins at the bottom that support the sheet when in the vertical plane.



Suitable for loading and unloading of horizontal machining centres and lathes.



The magnet is adjustable along the arm to suit a range of load diameters or widths.



More Information...



How it works...





Electric Chain Hoist   Datasheet - LF



Lifting Magnets

hand operated plate lifter

hand magnet

The plate lifter is a manually operated permanent lifting magnet for manually lifting light loads.



The plate lifter is ideal for picking up thin sheets from a stack and helps prevent injury to fingers as they are not in direct contact with the sheet.



More Information...





Electric Chain Hoist   Datasheet - Hand Magnets





Lifting Magnets

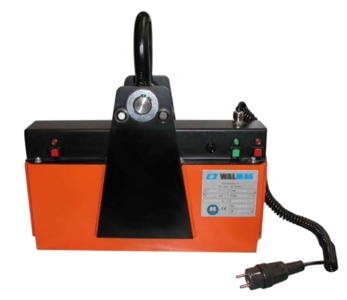

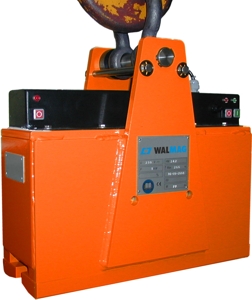

Electro-Permanent lifting magnets





magnet electro permanent













magnet electro permanent











What are Electro-Permanent Lifting Magnets?

Electro-Permanent (EP) lifting magnets incorporate permanent magnets in conjunction with steel parts. The permanent magnets provide the power for an indefinite period of time.

An external power source is not required which means that electro-permanent lifting magnets cannot loose their power due to a mains power failure. The magnetic power of an electro-permanent lifting magnet is turned ON and OFF by means of electricity with a short current surge. After that the magnet could be disconnected from the control and be used as a "self contained" device.





Electric Chain Hoist   Datasheet - EP





General aspects and application of Electro-Permanent Lifting Magnets

Electro-permanent lifting magnets create a strong but, relative to electromagnets, low magnetic field. Therefore they are rather sensitive to air gaps-. When the air gap between load and lifter increases, the magnetic force will decrease considerably. Handling of loads with a rough and uneven surface is therefore restricted. Because of the electric operation of this type of magnet it is very convenient for use in multiple on a beam. They can be operated from a distance. EPH series are used individually.

Maximum workload limit is 750 kg (Rating factor 3). EPHD series are used in multiple, suspended from a beam.

The manual supplied with each magnet provides detailed information of its capacities under various conditions.



The advantages of Electro-Permanent Lifting Magnets

  • Self contained, can be used virtually anywhere

  • Easy to operate

  • Minor investment

  • Low maintenance cost



Lifting Magnets

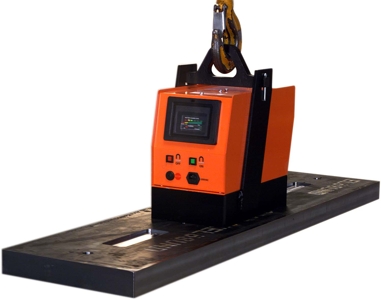

Battery lifting magnets









battery magnet

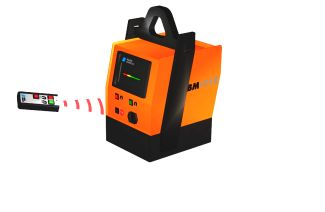

Battery Lifting Magnet

What are Battery Lifting Magnets?

Battery Powered lifting magnets are electro-magnets carrying their own power source, a 12 V battery. The battery provides the power for approx. 8 hours. Due to the integration of the battery and a controller/charger unit these devices are self contained and have no restricting power cables. Moreover, the risk of sudden power loss due to a power source failure is virtually non existent.

The magnetic power of our Battery Lifting Magnet is turned ON and OFF by means of a controller which incorporates visual and audible warning signals to indicate low battery.

Remote control is optional.





Electric Chain Hoist   Datasheet - Battery





General aspects and application of Battery Lifting Magnets

Battery lifting magnets create a strong and deeper magnetic field than permanent lifting magnets. Therefore they are less sensitive to air gaps and can also handle loads with a rough and uneven surface. Because of the electric operation, this type of magnet can be used in multiple on a beam, remotely operated by a common controller. Typically these magnets are used individually. Maximum workload limit is 5000 kg (Rating factor 2). The manual supplied with each magnet provides detailed information of its capacities under various conditions.



The advantages of Battery Lifting Magnets

  • Self contained, no restricting cables

  • Easy to operate

  • Minor investment

  • High lifting capacity



Lifting Magnets

Electro (Electric) lifting magnets







Lifting Magnet

What are Electro (Electric) Lifting Magnets?

Electro lifting magnets incorporate a coil in conjunction with steel parts. Electric current provided to the coil generates power until the current is cut off. An external power source is required which implies that electro-magnets can loose their power due to a mains power failure or cable breakage. The magnetic power of an electro-magnet is turned ON and OFF and controlled by means of a controller. Variable power and demagnetizing belong to the possibilities.


Remote control is optional.



General aspects and application of Electro (Electric) Lifting Magnets

Electro lifting magnets create a strong and deep magnetic field. Therefore they have a low sensitivity to air gaps. Handling of loads with a rough and uneven surface shouldn't be a problem. Because of the electric operation of this type of magnet it is very convenient for use in multiple on a beam. They can be operated from a distance. There is a wide variety of electric lifting magnets, for steel mills, scrap yards, plate or bundle handling. In this section we only address a special version for moving loose materials. The manual supplied with each magnet provides detailed information of its capacities under various conditions.



The advantages of Electro (Electric) Lifting Magnets

  • Strong, deep magnetic field

  • Easy to operate

  • Variable power and de-magnetisation

  • Very versatile
