Vaculifter vacuum Lifting Equipment - green line Self-Suction Vacuum Lifting Beams

Our VacuLifter Green Line self-suction vacuum lifters can be suspended from a hoist hook with NO electrics required to operate them. The vacuum is automatically created when the vacuum lifter is lifted.



DatasheetVacuLifter Green Line Vacuum Range Datasheet





video icon Video Clip - U02-6



video icon Video Clip - General



video icon Video Clip - Vacu-Lift Company Video




A low dead weight means little loss of crane capacity and they are virtually maintenance free, even in full production.

Each self-suction vacuum-lifting beam is supplied with an audio/visual warning system to warn the operator of excess weight and loss of vacuum.  The suction feet will not damage the item to be lifted.  Operation is simply place down and lift up, with the vacuum automatically switched from suction to no suction each time the beam is supported.

Our self-suction vacuum-lifting beams can be supplied with a single or adjustable multiple suction feet with capacities ranging from 140 to 5000 kg.

When lifting large area measurements it is imperative that there is no flexing/bending of the sheet.

All devices are fitted with rubber sealing rings with the quality of rubber designed for normal lifting conditions.

* Standard - BLACK
* Oil resistant - BLUE
* Heat resistant - RED

vaculifter vacuum lifting equipment

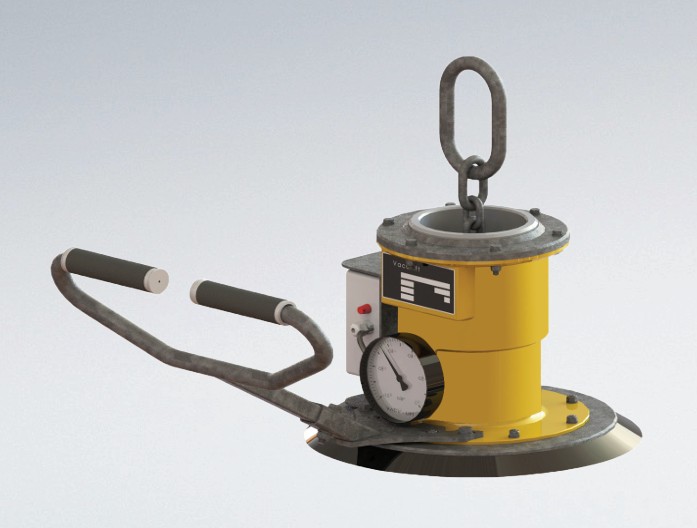

single pad vacuum lifter

Capacity: 75, 270, 640 and 1100 kg

Max. Sheet Size: 1000 x 1000 mm (U01)
Max. Sheet Size: 1000 x 2000 mm (U02, U075)
Max. Sheet Size: 2000 x 2000 mm (U125)

DatasheetU01 Datasheet
DatasheetU02 Datasheet
DatasheetU075 Datasheet
DatasheetU125 Datasheet

vaculifter vacuum lifting equipment

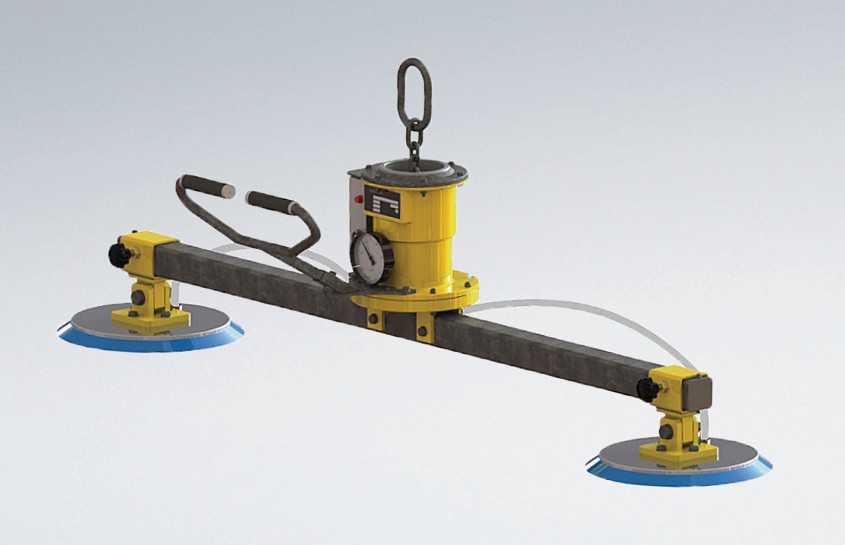

two pad vacuum lifter

Capacity: 300, 750, 1250 and 2100 kg

Max. Sheet Size: 1500 x 3000 mm (U02, U075, U125)
Max. Sheet Size: 2000 x 3500 mm (U250)

DatasheetU02 Datasheet
DatasheetU075 Datasheet
DatasheetU125 Datasheet
DatasheetU250 Datasheet

vaculifter vacuum lifting equipment

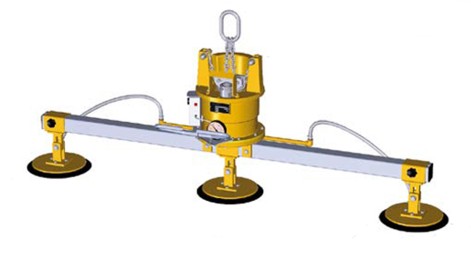

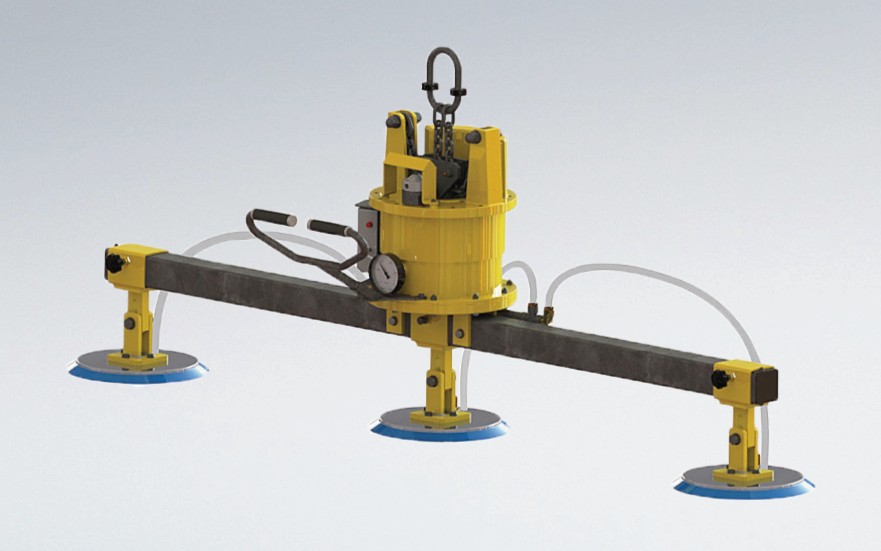

three pad vacuum lifter

Capacity: 750 kg

Max. Sheet Size: 1500 x 3000 mm

DatasheetU075 Datasheet

vaculifter vacuum lifting equipment

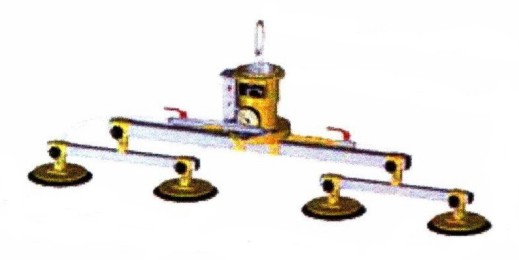

four pad vacuum lifter

Capacity: 300, 1250, 2200, 2300 & 4000 kg

Max. Sheet Size: 1500 x 3000 mm (U02)
Max. Sheet Size: 2000 x 3000 mm (U250, U400)
Max. Sheet Size: 2000 x 6000 mm (U125, U250)

DatasheetU02 Datasheet
DatasheetU125 Datasheet
DatasheetU250 Datasheet
DatasheetU400 Datasheet

vaculifter vacuum lifting equipment

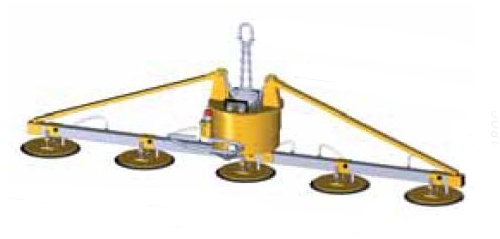

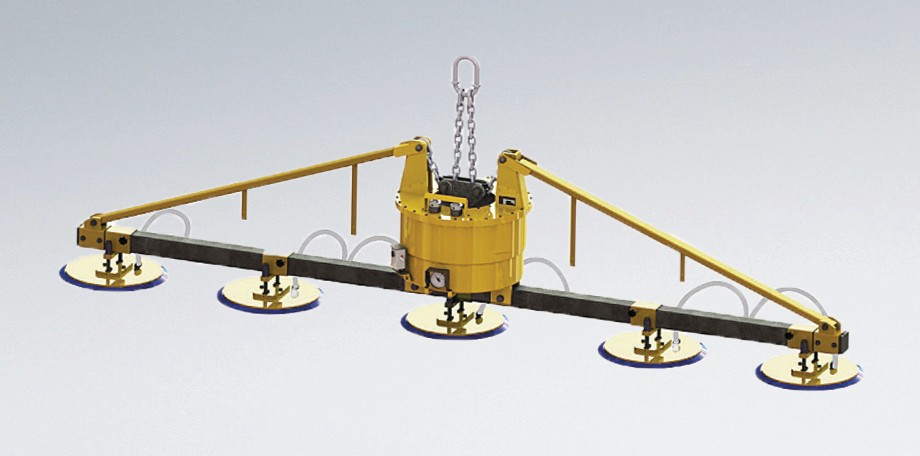

five pad vacuum lifter

Vacuum Lifting Beam Capacities: 4000 kg

Max. Sheet Size: 2000 x 6000 mm (U400)

DatasheetU400 Datasheet

vaculifter vacuum lifting equipment

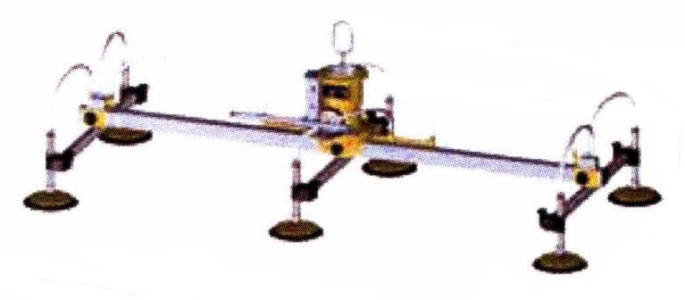

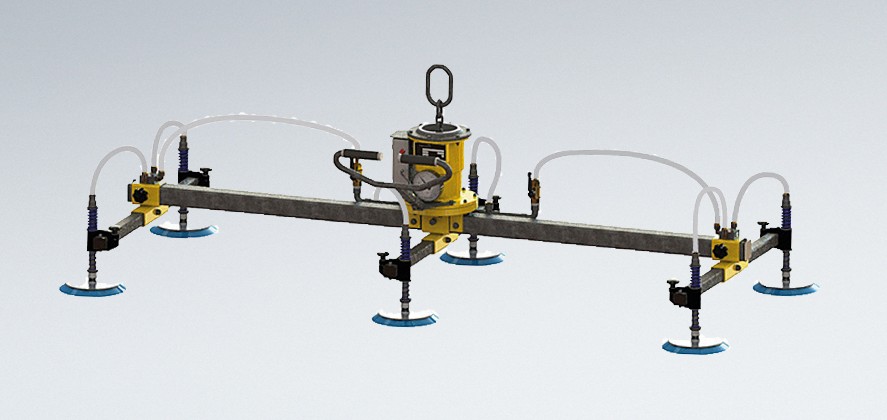

six pad vacuum lifter

Capacities: 270, 650, 1250 and 4000 kg

Max. Sheet Size: 1500 x 3000 mm (U02, U075, U125)
Max. Sheet Size: 2000 x 10000 mm (U400)

DatasheetU02 Datasheet
DatasheetU075 Datasheet
DatasheetU125 Datasheet
DatasheetU400 Datasheet

vaculifter vacuum lifting equipment

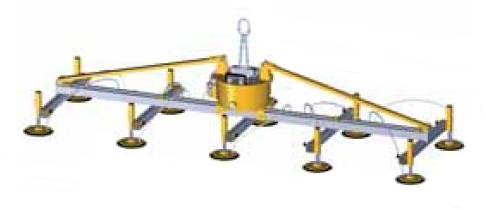

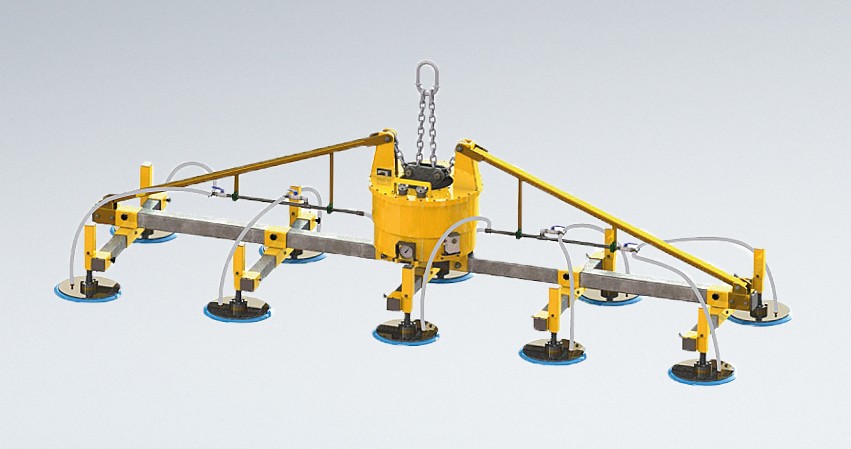

ten pad vacuum lifter

Vacuum Lifting Beam Capacities: 2200, 4000 kg

Max. Sheet Size: 2500 x 6000 mm (U250)
Max. Sheet Size: 2500 x 6200 mm (U400)

DatasheetU250 Datasheet
DatasheetU400 Datasheet

Alternative vacuum lifting beams are available and can be made to your specific requirements, please contact us for further details.
