LEMM REEL HANDLING EQUIPMENT

'More Information & Buy Online'

Lemm reel handling equipment is built for individual applications in the paper, label, film and foil producing industries. It is designed to grip and rotate through 90 degrees sensitive, costly material in reels with no loss of value through faulty handling.

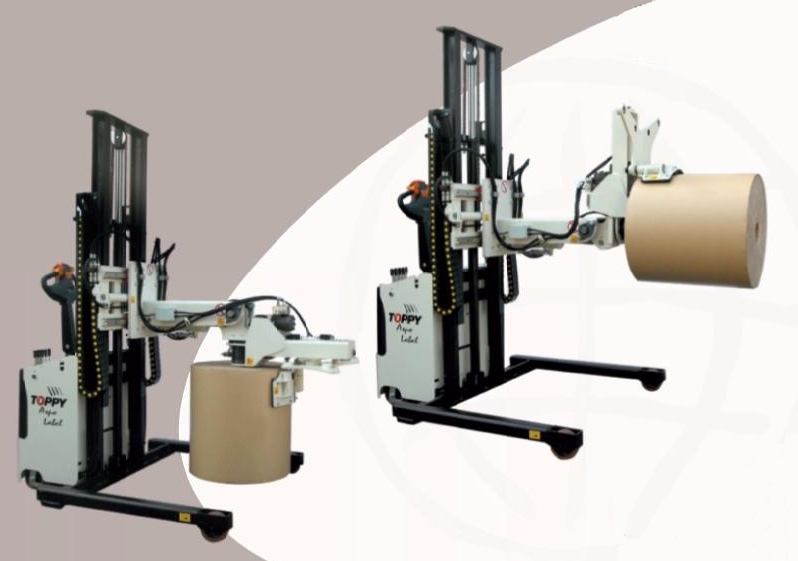

Moving materials in reels is a job where slip-ups can come expensive. Damage to edges and outer layers knocks up costs. Incorrect reel handling often causes accidents involving personal injury - that's why Lemm designs incorporate safety as a top priority. Lemm reel handling equipment is normally suspended from an electric chain hoist on a jib or overhead crane but is now available mounted onto a mobile battery lift truck - See Below:

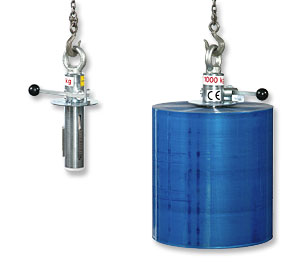

RH and RHA



The RH and RHA reel handling units are for picking up reels with the core vertical. There is no rotation facility on these models. The RH model has a manually operated core gripper whilst the RHA model has an automatic operation of the core gripper. Optional reel turner clamps are available for telescoping materials. The maximum safe working load is 2000 kg.

See manual RH reel lifter in action
(requires flash player 8+)

See automatic RHA reel lifter in action
(requires flash player 8+)

More Information & Buy Online

RWM



The RWM reel handling unit has a manually operated expanding core gripper to grip the reel and a manually operated rotate to rotate the load through 90 degrees. The maximum safe working load is 150 kg.



See reel lifter in action (requires flash player 8+)

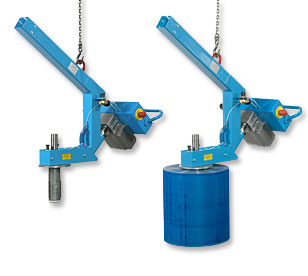

RWE



The RWE reel handling unit has a manually  operated expanding core gripper to grip the reel core and uses pneumatics to rotate the load through 90 degrees. The maximum safe working load is 250 kg.


See reel lifter in action (requires flash player 8+)

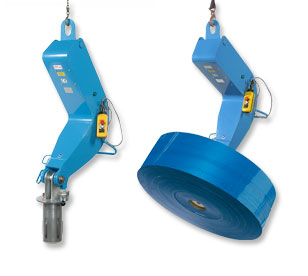

RWS



The RWS reel handling unit is used for heavy duty applications and has a manual or hydraulically operated expanding core gripper to grip the reel core and uses hydraulics to rotate the reel through 90 degrees. There is an option of an hydraulic clamp for telescoping materials. The maximum safe working load is 2500 kg.

See reel lifter in action (requires flash player 8+)

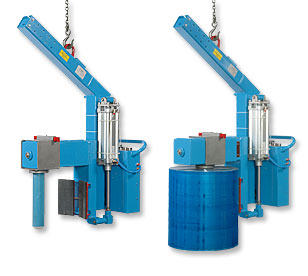

RWK I/A



The RWK I/A reel handling unit is used for lifting reels with materials which will telescope if lifted by the core alone. It pneumatically grips the reel between a mandrel in the core and a gripper on the outside diameter of the reel and also uses the pneumatics to rotate the reel through 90 degrees. The mandrel in the core can also be used to grip the core if required. The maximum safe working load is 300 kg.

See reel lifter in action (requires flash player 8+)

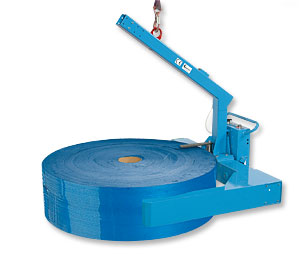

RWK A/A



The RWK A/A reel handling unit has a pneumatically operated outside clamp to grip the reel and rotate it through 90 degrees. The maximum safe working load is 250 kg.

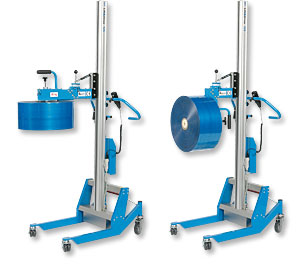

Lift and Drive



The Lift & Drive reel handling truck offers the customer a mobile hand pushed reel lifting and turning system with a capacity of up to 150 kg. The easy to use RWM reel turner is incorporated into a lightweight mobile battery lift stacker truck offering the following specification.

Core Diameter: 70/76, 120, 152 mm
Reel Diameter: Max. 800 mm
Reel Width: Max. 600 mm
Reel Weight: Max. 150 kg
Outside clamp available for telescoping reels

See reel lifter in action (requires flash player 8+)
